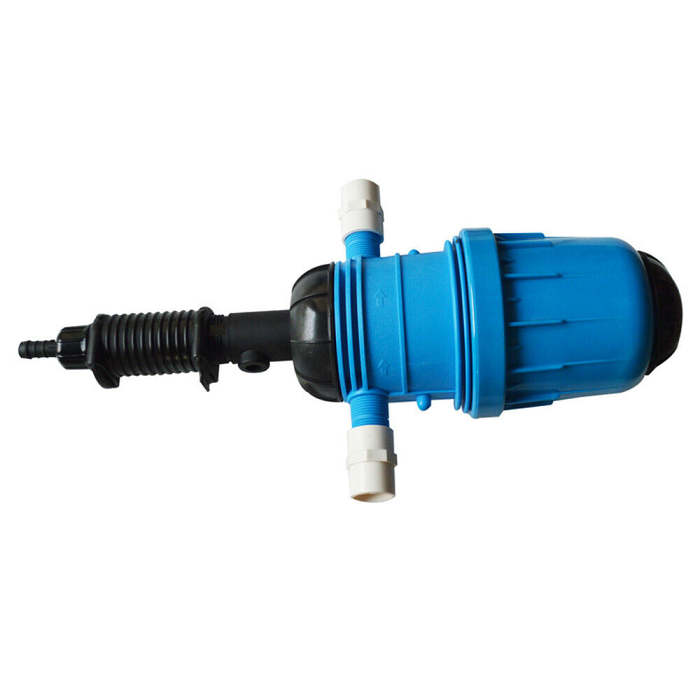

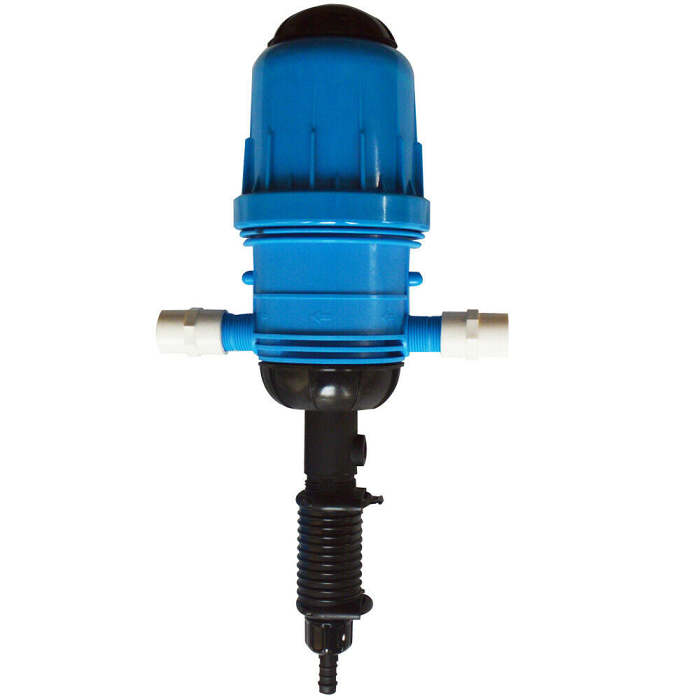

0.2%-2%/0.4%~4% Adjustable Fertilizer Injector Water Powered Chemical Liquid Doses Dispenser Drip Irrigation Injector Dosing Pump

Feature:

1. Proportional pumps are powered by flowing pressure water with little loss of water pressure and no other power facilities.

2. Equipped with air release valve, the scale is precise and clear, the dosage is adjustable, and it is convenient to use.

3. Using the hydraulic power of the proportional pump as an engine, the piston and connecting rod in the proportional pump are driven, and liquid additives are directly inhaled to dissolve in water.

4. Proportional pump can adjust the proportion of additives in water according to the actual situation to achieve the best effect of additives.

5. Made of high quality PP material, durable, corrosion resistant, wear resistant, stable performance, long service life.

6. Suitable for equipment maintenance, environmental protection and water treatment, industrial hygiene, vehicle cleaning, food processing, printing or other industries requiring specific dilution.

Description:

【Working Principle】 With flowing pressure water as power, the loss of water pressure is small, and no other power facilities are needed. In case of emergency, it can quickly dispense drugs and save a lot of manpower.

【Important Parameters】0.2%-2% (1:50-1:500) / 0.4%-4%(1:25-1:250); Working pressure: 0.3~6 bar (about 4.35~87 psi)

【Accurate and Effective】Adopt Reciprocating Dynamic Sealing Technology, has higher accuracy. Unique cylinder block and piston motion area design ensures more uniform and effective mixing of liquid and medicine.

【Application】 Fertilizer irrigation, equipment maintenance, horticultural flowers, livestock breeding, environmental protection and water treatment, industrial hygiene, vehicle clarity, food processing, drinking water industry or other industries requiring a certain proportion of dilution.

【Note】 Each dosing pump will be tested with clean water before shipment. If the item you received is a little wet, please be assured that it does is a new product. Please do not inject corrosive liquid, such as bleach, some kinds of fertilizers, etc., or the pump will be corroded.

Specification:

Item Type: Automatic dosing device

Material: PP

Color: As shown in the picture

Size: Approx. 48x16.5 cm / 18.9x6.5in

Weight: Approx.2200g/77.6oz

Additive Inlet Diameter: Outer diameter 32 mm

Proportion Range: 0.2%-2% (1:50-1:500) / 0.4%-4%(1:25-1:250)

Working Water Pressure: 0.3-6bar (kg)

Continuous Operation: >100T

Working Temperature: 3-30 ℃

Package Included:

A set of automatic proportional dosing device
