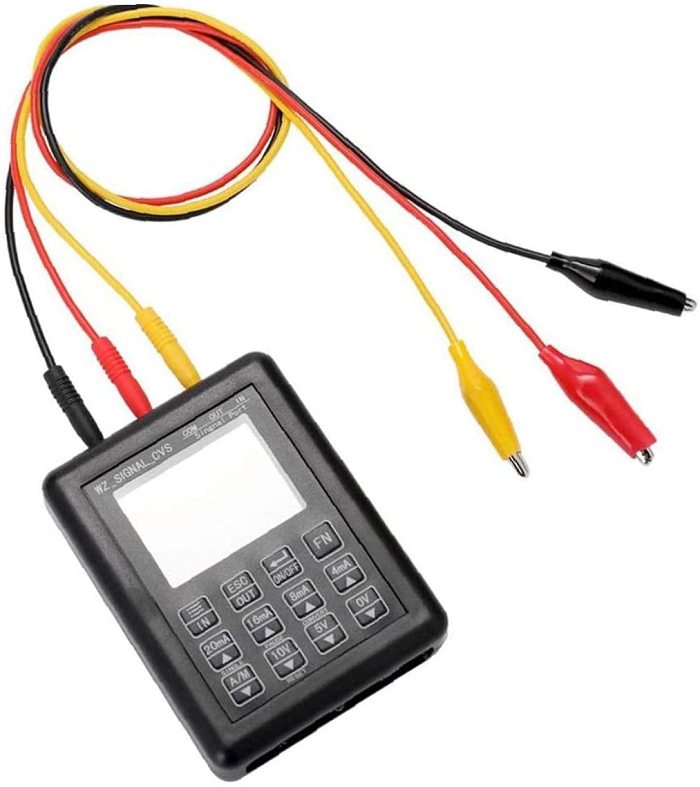

4-20mA Signal Generator Current Voltage Transmitter Calibrator Signal Source
✔ Worldwide free shipping on orders over $14.99 !
✔ Free gift message card: Yes
✔ Corporate bulk purchasing: Yes
✔ Dropshipping services: Yes
✔ Customized packaging: Yes
✔ OEM ODM orders: Yes
For any special requests, feel free to contact us anytime. We're here to help!
-
- Product Name: 4-20mA Signal Generator Current Voltage Transmitter Calibrator Signal Source
- Item NO.: 2555627
- Weight: 0 kg = 0.0000 lb = 0.0000 oz
- Category: Cool Gadgets
- Tag: Current Voltage Transmitter , Signal Generator
- Brand: VEASOON
- Creation Time: 2024-09-07
Features:
Active current output: range: 0-24mA; resolution: 0.01mA; maximum load: 750Ω
Passive current output: range: 0-24mA; resolution: 0.01mA; external power supply up to 30V.
Voltage output range: 0-12V; resolution: 0.01V; maximum current 30mA
24V voltage output: drive current: 24mA.
Current input measurement: range: 0-24mA; resolution: 0.01mA; input impedance: 100Ω
Voltage input measurement: range: 0-30V; resolution: 0.01V; input impedance: 2.5MΩ
Working environment: 0°C-50°C
Description:
VC conversion function:
This function is mainly used for some temporary voltage and current conversion, such as converting 0-10V input to 4-20mA output.
VC active conversion: convert voltage signal input into active current signal output VC passive conversion: convert voltage signal input into reactive current signal output
C-V conversion: convert current input signal into voltage signal output
The functional rules include the following parts: VC transfer switch, transfer mode, voltage upper limit, voltage lower limit, current upper limit, current lower limit and over-range.
Internal reverse and overcurrent protection, the protection voltage is 30V.
Built-in single 3.7V lithium battery power supply; according to the usage, the use time will be different (continuous output 20mA may exceed 6 hours).
When there is an internal battery voltage prompt, when the (UV lamp) under voltage indicator is on, please turn off the charging.
Do not use it for a long time, please charge it every two months.
Charge with micro USB.
The operating temperature range is 0 to 50 degrees Celsius.
Package Included:
1 × Signal Generator Host
3 × Test Lines
