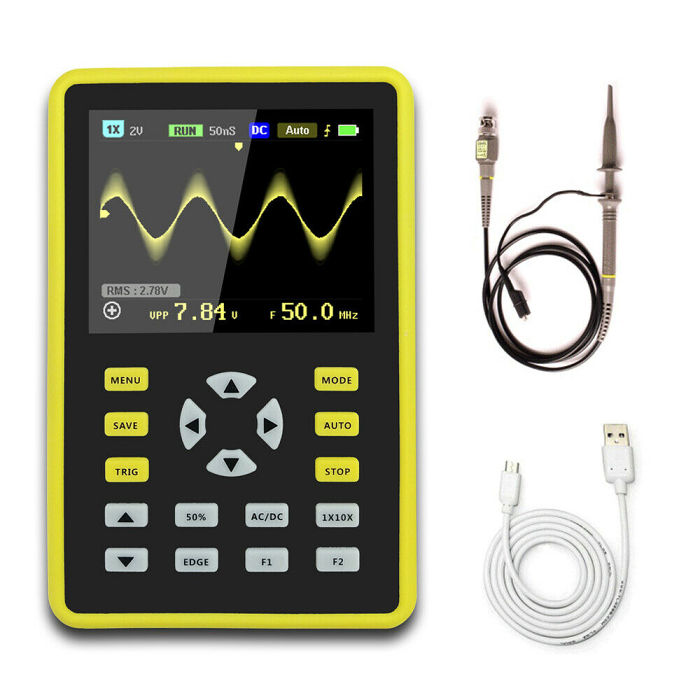

Handheld Digital Tablet Oscilloscope Portable Storage Oscilloscope Kit 100MHz Bandwidth 500MS/s 5012H 2.4 Screen

The 5012H is a versatile, highly practical and efficient handheld oscilloscope for the maintenance industry and the R&D industry. FNIRSI has a real-time sampling rate of up to 500MS/s and an analog bandwidth of 100MHz.

Description:

Faster Sampling Speed - 100MHz analog bandwidth, 500MS/s real-time sampling rate(1X=5MHz,10X=100MHz). Professional handheld oscilloscope for the maintenance industry and the R&D industry.

Cost Effective - LCD screen with 2.4-inch 320*240 resolution. Built-in 64M storage space, the maximum storage of 2000 waveform pictures. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment.(Note:There is a protective screen film on the surface of the screen, please tear it off before use.)

Intelligent anti-burn - 1X Can withstand up to 600V withstand voltage. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position.

Trigger function - With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals.

Endurance capability - Built-in 3000mah high-quality lithium battery can be used continuously for 8 hours, can work continuously for 8 hours, easy to carry around

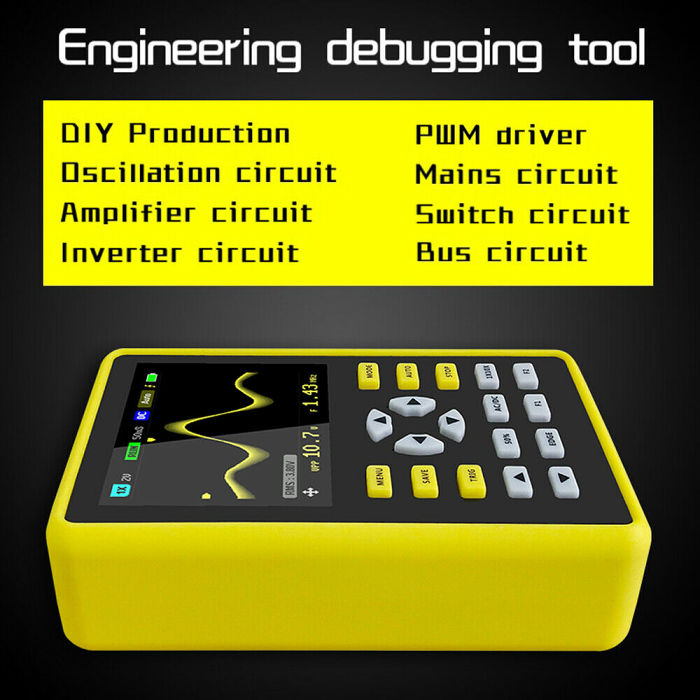

Applicable fields - FNIRSI-5012H is widely applicable in the academic experiment, electronic product design, debugging and maintenance, electronic engineering education, etc.

Specification:

Main material: ABS

Main color: black+yellow

Digital channel: 1

Analog bandwidth: 100MHz

Maximum real time sampling rate: 500MS/s

Vertical sensitivity: 50mV/div ~ 200V/div

Horizontal time base range: 50S/div ~ 6nS/div

Maximum test voltage: 1000V (10X probe)

Storage depth: 128KB

Input resistance: 1MΩ

ADC accuracy: 8 bits

Coupling mode: AC/DC

Trigger mode: single, normal, automatic

Trigger edge: ascending/descending edge

External trigger voltage: 0~80V

Display: 2.4 inch, 320*240 TFT process

Power supply: 1 * lithium battery, 5000mAh (included)

Item size: 114 * 74 * 33mm / 4.5 * 2.9 * 1.3in

Item weight: 300g / 10.6ounce

Package size: 134 * 94 * 56mm / 5.3 * 3.7 * 2.2in

Package weight: 437g / 1.0lb

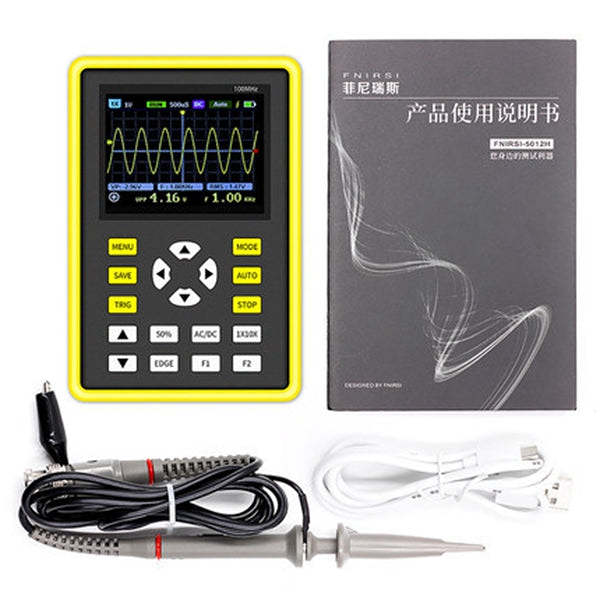

Package Included:

1 × Digital Tablet Oscilloscope

1 × USB Cable

1 × User Manual
