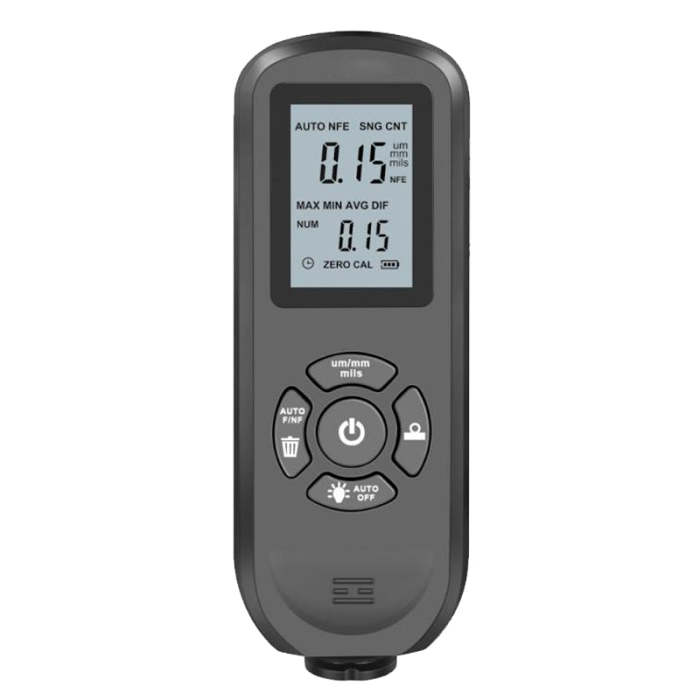

    • Product Name: Paint Thickness Gauge Fast Auto Recognition Measuring Range 0-2000UM
    • Item NO.: sku1725691481987
    • Weight: 0 kg = 0.0000 lb = 0.0000 oz
    • Category: Cool Gadgets
    • Brand: VEASOON
    • Creation Time: 2024-09-07

    Features:

    It is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
    Measuring range is 0-2000UM.

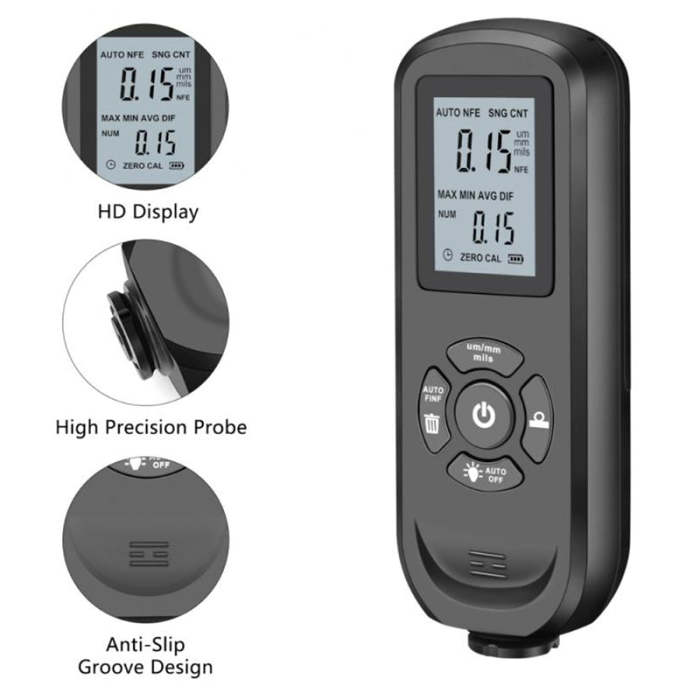

    The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.
    Designed for non-destructively measuring the thickness of coating and painting.
    Essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

    Specification:
    Material: ABS
    Size: Approx.12x4.3x2.2cm/4.72x1.69x0.87in
    Color: Black/Yellow
    Probe: F probe, N probe
    Magnetic Induction: Measuring principle(F), Eddy current effect(N)
    Measuring range: 0-2000um
    Precision: ±(3%+1um)
    Resolution: 0um-99.9um(0.1um) 100um-999um(1um) >1000um(0.01mm)
    Zero Calibration: Support
    Statistics: Average, minimum, maximum, number
    Unit: um,mm,mils
    Minimum Convex Radian: 5mm
    Minimum Concave Radian: 25mm
    Minimum Measured Area: Diameter 20mm
    Minimum Substrate Thickness: 0.2mm 0.05mm
    Maximum Measuring Speed: 2 readings per second
    Power Supply: 2x1.5V AAA battery(not included)
    Operating Environment: Temperature 0-50°C, 20-90% rh (non-condensed)
    Preservation Environment: Temperature:-10-60°C, 20-90% rh (non-condensation)

    Package Includes: 1 x Thickness gauge

    note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
    2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
